AuditoriumAuditorium

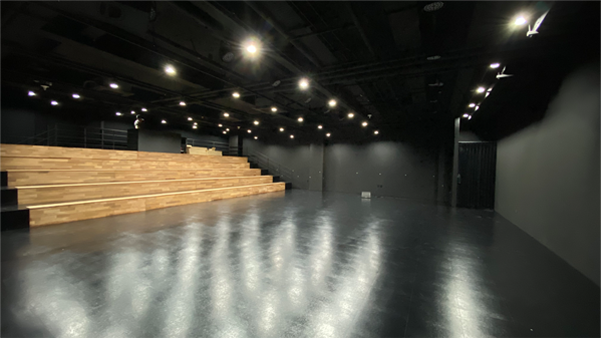

The Arts Creation Studio Maru is a venue for creative activities such as small-scale performances, rehearsals, and showcases. It is in the form of a black box with movable cushioned seats.
- Seats and floor area: 80 seats, 227㎡
- Stage: 10.2 m wide * 7.5 m high
- Equipment and features: Sound system, lighting system, air conditioning and heating systems, and seats
※ Equipment List
| Classification | Item | Manufacturer and Model | Q’ty | Notes (Major Spec.) |
|---|---|---|---|---|
| Sound Equipment | Aduio Console | Midas / Pro2 | 1 | Digital / 8x16 Local XLR I/O / 2x3 AES3 I/O / 6×AES50 |
| Allen & Heath / SQ5 | 1 | Digirtal / 16x12 Local XLR I/O / 32x32 Usb Audio interface I/O / 64×64 LAN I/O | ||
| I/O Box | Midas / DL251 | 1 | 48×16 I/O / 3×AES5 | |
| Allen & Heath / AB168 | 1 | 16×8 XLR I/O | ||
| Jenix / 16ch Multi Box | 1 | 16×XLR, 1/4" In | ||
| Main Speaker | dBTechnologies / LVX15 | 2 | 15" / Active / Flying | |
| Sub Woofer | dBTechnologies / SUB 18H | 2 | 18" / Active / Stand | |
| Stage Monitor Speaker | dBTechnologies / Flexsys FMX12 | 2 | 12" / Active | |
| dBTechnologies / Flexsys FMX10 | 6 | 10" / Active | ||
| APIA / AXI-S | 2 | 8" / Passive | ||
| Headphone | AKG / K271 MKII | 1 | Closed back | |
| Wireless System | Sennheiser / EW-D SKM-S | 10 | Transmitter (Handheld) / Digital | |
| Sennheiser / EW-D SK | 10 | Transmitter (Bodypack) / Digital | ||
| Sennheiser / EW-D EM | 10 | Receiver / Digital | ||
| Shure / QLXD1 | 2 | Transmitter (Bodypack) / DIgital | ||
| Shure / QLXD4 | 2 | Receiver / Digital | ||
| Sennheiser / ADP UHF | 4 | UHF Antenna | ||
| Sennheiser / EW-D AB(V) | 4 | Antenna Booster | ||
| Sennheiser / EW-D ASA | 4 | Antenna Splitter | ||
| Wireless Microphone | Sennheiser / MMD865 | 4 | Condenser(Handheld) / Super Cardioid | |
| Sennheiser / MMD845 | 6 | Dynamic(Handheld) / Super Cardioid | ||
| Sennheiser / ME2 | 10 | Condenser(Lavalier) / Omni-Directional | ||
| Sennheiser / E908-B-EW | 1 | Gooseneck / Cardioid | ||
| Shure / WL93T | 2 | Condenser(Lavalier) / Omni-Directional | ||
| Shure / Beta54 | 1 | Condenser(Earset) / Super Cardioid | ||
| DPA / 4088 | 2 | Condenser(Earset) / Cardioid | ||
| DPA / 4099 | 5 | Condenser / Super Cardioid | ||
| Wired Microphone | Sennheiser / E835-S | 3 | Cardioid | |
| Sennheiser / E845-S | 3 | Cardioid | ||
| Network Bridge | Klark Teknik / DN9650 | 1 | 3×AES50 / MADI Option Card | |
| DI-Box | Rupert Neve Designs / RNDI-S | 1 | Stereo / Active | |
| Rupert Neve Designs / RNDI | 6 | Mono / Active | ||
| Radial / J48 | 1 | Mono / Active | ||
| Playback | E&W / CDP-1000 | 1 | CD / USB / SD card,all available CD-Player | |
| Supreme Sound / SP-8S | GNS / GSQ-80 | 2 | 9ch / 220V, 10A | |
| Supreme Sound / SP-8S | 1 | 8ch / 220V, 10A | ||
| Audio Interface | Steinberg / UR22C | 1 | 2×2 I/O | |
| Personal Monitor System | Behringer / P16-I | 1 | 16×Local 1/4" In / 6×RJ45 Out | |
| Behringer / P16-HQ | 5 | Digital / 16ch | ||
| Guitar Amp | AER / Compact 60/4 | 1 | Acoustic Guitar Combo | |
| Marshall / JVM410C | 1 | Electric Guitar Combo | ||
| Ampeq / SVT-4pro | 1 | Bass Guitar Head | ||
| Ampeq / SVT-410HLF | 1 | Bass Guitar Cabinet | ||
| Lighting Equipment | Lighting Console | MA Lighting / Grand MA3 Compact | 1 | DMX 512, Ethernet |
| Avolites / Tiger Touch II | 1 | DMX 512, ArtNet, sACN | ||
| LED Spot | LED Profile Spot300W | 2 | 300W / Moving head / ris, Gobo | |
| GTD Lighting / GTD-LM330 II BSW | 4 | 330W / Moving head / Gobo, dynamic FX | ||
| LED Wash | AURA1915C | 6 | Moving head,19pcs, 15W / RBGW | |
| EK Lighting / R3 | 6 | Moving head,7pcs, 40W / RGBW | ||
| LED Moving Bar | Phoenix Lighting / PHH026 | 6 | 12pcs×30W | |
| LED Par | Color Imagination / Parzoom 3610F | 12 | 36pcs, 10W / RGBW | |
| EK lights / EPAR VW Infiniti Par | 6 | 150W / RGBW | ||
| LED Fresnel Spot | EFS-CTO200 | 3 | 200W / with Zoom, CTO | |
| Hazer | DJ Power / DJ-660 | 1 | 500W / 2.5L / Max output volume: 3,000 cuft/min | |
| DMX Splitter | 1IN 8OUT | 1 | - | |
| Lighting Console Display Monitor | Dell / U2720Q | 1 | 27" / 16:9 / UHD | |
| Facility Devices | Fly duct & Lighting Batten | - | 1 | 9m / Fixed / 15 AC output socket, 2 DMX port |
| - | 2 | 9m / Fixed / 8 AC output socket, 1 DMX port | ||
| Placard Batten | - | 1 | 9m / Max 20Kg / Motorized | |
| Beam Projector Screen | - | 1 | W: 4.5m, H: 3m / Motorized | |
| Beam Projector | ViewSonic / PG800X(VS17080) | 1 | 11,000Lumens / WUXGA / fixed / ET-EMW300 Lens | |
| Software | DAW | Avid / Pro tools Ultimate | 1 copy | 2024v |
| Props and other Items | Apple Box | - | 4 | W: 0.55m, D: 0.35m, H: 0.3m |
| Additional flooring | - | 10 | W: 1.80m, D: 0.9m, H: 0.1m | |
| Folding screen | - | 1 | W: 2.5m, H: 1.5m | |
| - | 4 | W: 3m, H: 2m | ||
| Carpet | - | 6 | W: 1.8m, H: 0.5m | |
| Mat | - | 3 | W: 1.8m, D: 1.5m | |
| - | 1 | W: 6m, D: 3.3m | ||
| - | 1 | W: 3.3m, D: 1.6m | ||
| Dry Cabinet | HORUSBENNU / ADH-X200 | 2 | 200L / Digital door lock | |
| Audio Cable | - | 20 | XLR, TRS, TS | |
| Mic Stand | Bando / BD911B | 8 | T-type(long) / Black | |
| Bando / BD940 | 4 | T-type(long) / Silver | ||
| Bando / BD959 | 4 | T-type(short) / Black | ||
| Bando / BD Desk JS-3 | 4 | Gooseneck / Black |
